IOP Series
产品名称：IOP Series
产品编号：145245-162
产品型号：IOP32,IOP32D,IOP HC32
更新时间：2009.12.02
出品厂家：英国MTL浪涌防雷保护器
浏览次数：80
IOP Series
Specifi cation
All fi gures typical at 77°F (25°C) unless otherwise stated
Maximum surge current
20kA (8/20μs waveform) per line
Leakage Current
<1μA @ working voltage
Maximum rated load current
0.675A (5A for IOP HC32)
Loop resistance
4 Ohm (0 Ohm for IOP HC32)
Bandwidth
6.5 MHz (N/A for IOP HC32)
Attenuation
< - 0.3dB @ < 1MHz
-3.0dB @ 6.5MHz
Response time
<1ns
Ambient temperature
–40°F to +176°F (–40°C to +80°C) working
–40°F to +176°F (–40°C to +80°C) storage
Humidity
5 to 95% RH (non-condensing)
Terminals
2.5mm2 (12 AWG)
Electrical connections
Plug/header screw terminal strip
Mounting

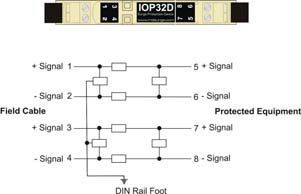

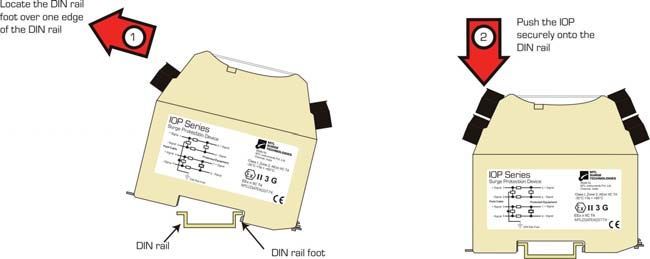

T-section DIN-rail (35 x 15mm rail)
Weight
5oz (140g approximately)
Case fl ammability
UL94-V0
EMC compliance
BS EN 60950:1992
BS EN 61000-6-2:1999
BS EN 61010-1:1993
Electrical safety
See approvals on bottom, right
| Model | IOP32 | IOP32D | IOP HC32 | |
| Nominal voltage | Un | 32V | 32V | 32V |
| Rated voltage (MCOV) | Uc | 36V | 36V | 36V |
| Nominal current | In | 675mA | 675mA | 5A |
| Nominal discharge current (8/20μs) | isn | 3kA | 3kA | 3kA |
| Max discharge current (8/20μs) | Imax | 20kA | 20kA | 20kA |
| Lightning impulse current (10/350μs) | Iimp | 2.5kA | 2.5kA | 2.5kA |
| Residual voltage @ isn | Up | 45V | 45V | 45V |
| Voltage protection level @ 1kV/μs | Up | <38V | <38V | <38V |
| Bandwidth | fG | 6.5MHz | 6.5MHz | N/A |
| Series resistance | R | 2 | 2 | 0Ω |
| Operating Temperature Range | -40°C to +80°C | |||
| Category tested | A2, B2, C1, C2, C3, D1 | |||
| Overstressed fault mode in=3kA | 22kA | 22kA | 22kA | |
| Impulse durability (8/20μs) | 10kA | 10kA | 10kA | |
| Degree of protection | IP20 | |||
| AC durability | 1Arms, 5T | |||
| Service conditions | 80kPa-160kP5% - 95% RH | |||
