MA3100 Series

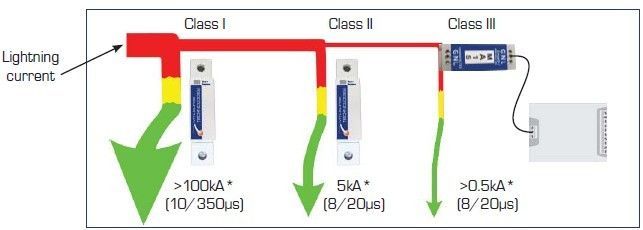

Coordinated IEC 61643 Class I, Class II and Class III surge protection
The MA3100 range offers cost effective surge protection for applications described by IEC 61312, where the AC mains supply can carry
a partial share of the lightning surge current. Class I surge protectors (rated according to IEC 61643) are designed to carry up to 60kA
(10/350μs). Class II surge protectors are characterized by their ability to protect against 8/20μs impulses up to 45kA, possibly resulting
from the operation of a class I device. Finally Class III devices are used to protect individual pieces of equipment. An excellent example of a
class III device is the MA15.

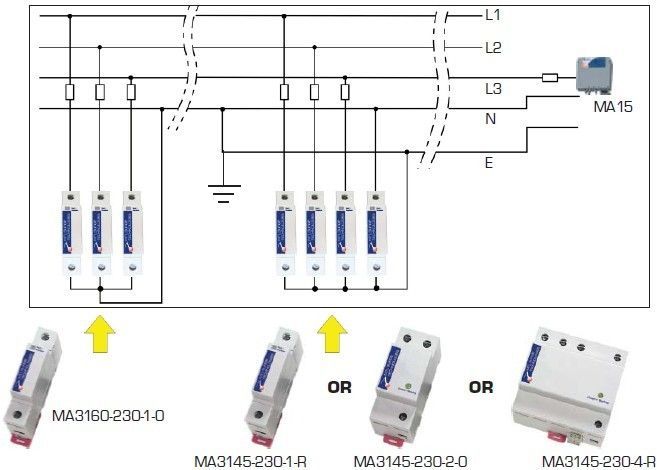

TN-C-S System

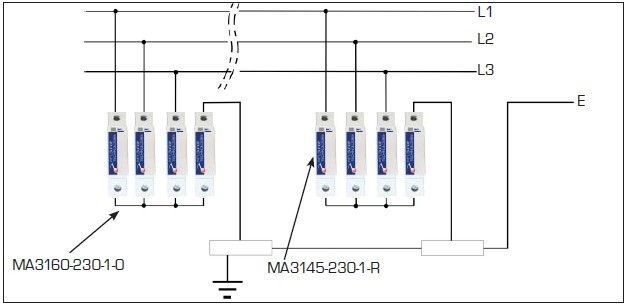

Variations for IT

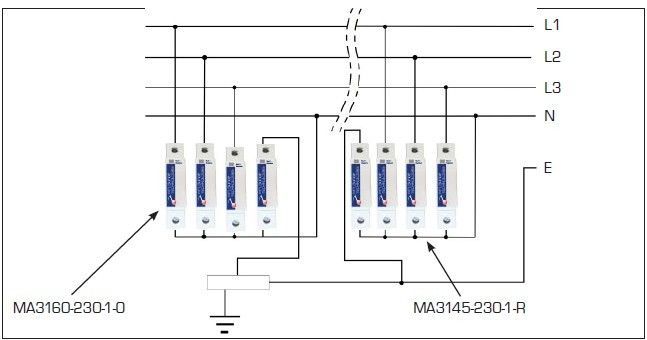

Variations for TT

Class I Surge Protection Device
Technical data MA3160 230-1-0

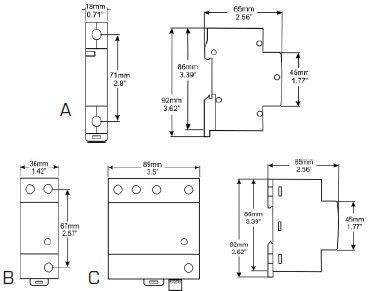

Dimensions (see Fig. 1 for A, B and C) A
IEC category/VDE requirement class: I/B
Max. continuous operating voltage Uc: 250V 50/60Hz
Leakage current: <1μA
Lightning test current Iimp (10/350μs) peak value/charge: 60kA/30As
2 & multi-pole >100kA/>50As
specifi c energy: 1000kJ/Ω
Protection level Up: ≤4kV
Response time ta: ≤100ns
Quenching short circuit current If 1.5kA/250V
Max. required backup fuse: 125A gL
Climate category: -40°C to +80°C
Perm. relative air humidity: ≤95%
Protection type acc. to IEC 60 529/EN 60 529: IP20
Maximum wire size: 25mm2
Torque: 4.5Nm
Inflammability class in acc. with UL94: VO


Class II Surge Protection Device
Technical data MA3145 120-1-R 230-1-R 120-2-0 230-2-0 120-4-R 230-4-R
Dimensions (see Fig. 1 for A, B and C) A (1 pole) A (1 pole) B (2 pole) B (2 pole) C (4 pole) C (4 pole)
IEC category/VDE requirement class: II/C II/C II/C II/C II/C II/C
Nominal voltage Un: 120V AC 230V AC 120V AC 230V AC 120/208V AC 230/400V AC
Max. continuous operating voltage Uc: 150V AC 270V AC 150V AC 270V AC 150V AC 270V AC
Lightning test current Iimp (10/350μs)peak value/charge: specifi c energy:
peak value/charge:
—— —— —— —— —— ——

specifi c energy:
—— —— —— —— —— ——
Leakage current to PE at Un: ≤0.3mA ≤0.3mA ≤0.3mA ≤0.3mA ≤0.3mA ≤0.3mA
Nominal discharge surge current In (8/20μs): 10kA 10kA 10kA 10kA 10kA 10kA
Max. discharge surge current Imax (8/20μs): 45kA 45kA 45kA 45kA 45kA 45kA
Protection level Up: <690V <1.3kV <690V <1.3kV <690V <1.3kV
Residual voltage at 5kA: 490V 900V 490V 900V 490V 900V
Response time ta: ≤25ns ≤25ns ≤25ns ≤25ns ≤25ns ≤25ns
Max. required backup fuse: 125A gL 125A gL 125A gL 125A gL 125A gL 125A gL
Remote indication contact:
max. perm. operating voltage Umax
20V AC/20V DC 20V AC/20V DC none none 125V AC/110V DC 125V AC/110V DC
max. perm. operating current Imax AC 20mA 20mA —— —— 0.3A 0.3A
max. perm. operating current Imax DC 20mA 20mA —— —— 0.3A 0.3A
Temperature range: -40°C to +80°C -40°C to +80°C -40°C to +80°C -40°C to +80°C -40°C to +80°C -40°C to +80°C
Protection type acc. to IEC 60 529/EN 60 529: IP20 IP20 IP20 IP20 IP20 IP20
Inflammability class according to UL94: VO VO VO VO VO VO
Stripping lgth: Biconnect term. blks./remote indicator contact: 14.5/7mm 14.5/7mm 14.5/7mm 14.5/7mm 14.5/7mm 14.5/7mm
Torque: Biconnect term. blks./remote indicator contact: 4.5Nm/0.25Nm 4.5Nm/0.25Nm 4.5Nm/0.25Nm 4.5Nm/0.25Nm 4.5Nm/0.25Nm 4.5Nm/0.25Nm

To order Class II surge protection devices, specify -

Class III Surge Protection Device
The MA15 Series of surge protection devices has a unique ‘three stage’ combination of protection elements, that suppress conducted
RFI and voltage surges. The current elements are fi rst, surge clipping components to absorb transient surges that may otherwise
damage equipment, second a fi lter to suppress noise in the system and third, ‘ring’ suppression. The third of these prevents surges
causing the fi lter to ‘ring’ (oscillate) under low load conditions -- an effect that actually accentuates interference in most commercially
available fi lters.
The MA15 Series protects electronic equipment and computer networks against the effects of ‘noise pollution’ induced in power
supplies. MA 15 units ‘clean up’ the effects of industrial noise and surges caused by lightning, switching devices, thyristor controls,
transmission system overloads and power-factor correction circuits.

MA15 technical data MA15D1 MA15D2
IEC category/VDE requirement class: III III
Nominal voltage Un: 120V AC 230V AC
Max. continuous operating voltage Uc: 150V 275V
Max. load current IL/40°C: 15A 15A
Leakage current to PE at Un: <0.3mA <0.3mA
Nominal discharge surge current In (8/20μs): sym/asym 3kA/6kA 3kA/6kA
Maximum discharge surge current Imax (8/20μs): sym/asym 18kA/36kA 18kA/36kA
Protection level Up: sym/asym 400V/400V 1,000V/1,000V
Response time ta: sym/asym <1ns/<5ns <1ns/<5ns
RFI attenuation (50Ω): -55dB @ 100MHz -55dB @ 100MHz
Maximum required backup fuse: 15A 15A
Temperature range: -40°C to +85°C -40°C to +85°C
Protection type accordance to IEC 60 529/EN 60 529: IP20 IP20
Inflammability class in accordance with UL94: V2 V2
Stripping length: 8mm 8mm
Thread/Torque: M3/0.8Nm M3/0.8Nm
