SD Series
产品名称：SD Series
产品编号：131945-265
产品型号：SD07,SD16,SD32,SD55,SD07R,SD16R,SD32R,SD55R,SD07X,SD16X,SD…
更新时间：2009.12.02
出品厂家：英国MTL浪涌防雷保护器
浏览次数：70
SD Series
Specification
All fi gures typical at 25°C (77°F) unless otherwise stated
Protection
Full hybrid line to line
Each line to screen/ground
Max. discharge surge current (Imax) (8/20μs)
20kA (8/20μs)
6.5kA (SD150X and SD275X only)
Nominal discharge surge current (isn)
3kA (8/20μs)
Lightning impulse current (Iimp) (10/350μs)
2.8kA
1.0kA (SD150X and SD275X only)
Response time
<1ns
RTD resistance range (SDRTD)
10 to 1500Ω
Degradation accuracy (SDRTD at 1mA)
0.1% (RTD resistance > 100Ω)
0.1Ω (RTD resistance < 100Ω)
Ambient temperature
–40°C to +80°C - working (-40°F to 176°F)
–40°C to +80°C - storage (-40°F to 176°F)
Humidity
5 to 95% RH (non-condensing)
Category tested
A2, B2, C1, C2, C3
Overstressed fault mode in=3kA
12kA
9kA (SD150X and SD275X only)
Impulse durability (8/20μs)
10kA
6.5kA (SD150X and SD275X only)
Terminals
2.5mm2 (12 AWG)

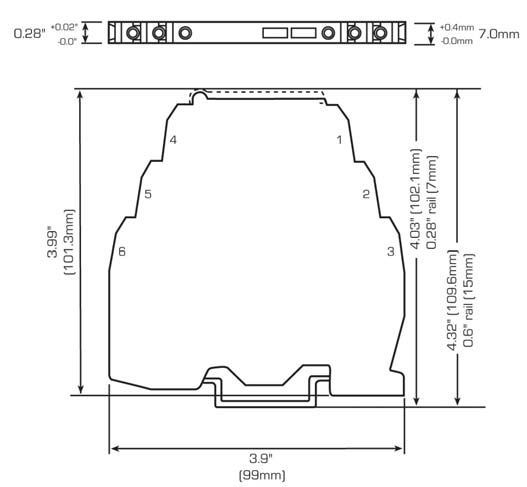

Mounting
T-section DIN-rail 35 x 7.5 or 35 x 15mm rail
(1.38” x 0.3” x 0.6”)
Weight
70g approximately (2.5oz)
Case fl ammability
UL94 V-2
AC durability
1Arms, 5T
Service conditions
80kPa - 160kPa
5% - 95% RH
EMC compliance
To Generic Immunity Standards,
EN 50082, part 2 for industrial
environments
R&TTE compliance
EN 50082-2 : 1995
EN 41003 : 1999
EN 60950 : 1992
(not applicable to SD150X and SD275X)
LVD compliance
SD150X & SD275X
EN 60950 : 1992
EN 61010 : 1995
SDPSTN
EN 41003 : 1999
IEC compliance
EN 61643-21:2001
ANSI/IEEE testing
C62.41-1-2002
C62.41-2-2002
C62.45-2002
| Model | Nominal voltage+ (Un) (Vdc)(Vac) |
Nominal current (IN) (mA) |
Series resistance (Ω/line) |
Max. leakage current(μA) |
Rated voltage (MCOV) (Uc) |
Voltage Protection level (Up)@1kV/μs (V) |
Residual voltage @isn (V) |
Bandwidth (Frequency) (fG) |
Specialfeature | ||
| SD07 | 7 | 5 | 250 | 4.2 | 500 | 7.7 | <12 | 30 | 25kHz | ||
| SD16 | 16 | 11 | 250 | 4.2 | 5 | 17 | <25 | 40 | 25kHz | ||
| SD32 | 32 | 22 | 250 | 4.2 | 5 | 36 | <45 | 60 | 25kHz | ||
| SD55 | 55 | 38 | 250 | 4.2 | 5 | 62 | <90 | 100 | 25kHz | ||
| SD07R | 7 | 5 | 400 | 2.7 | 500 | 7.7 | <12 | 30 | 50MHz | ||
| SD16R | 16 | 11 | 400 | 4.7 | 5 | 17 | <25 | 40 | 50MHz | ||
| SD32R | 32 | 22 | 400 | 10 | 5 | 36 | <45 | 60 | 50MHz | ||
| SD55R | 55 | 38 | 400 | 10 | 5 | 62 | <90 | 100 | 50MHz | ||
| SD07X | 7 | 5 | 400 | 2.2 | 500 | 7.7 | <12 | 30 | 25kHz | ||
| SD16X | 16 | 11 | 400 | 2.2 | 5 | 17 | <25 | 40 | 25kHz | ||
| SD32X | 32 | 22 | 400 | 2.2 | 5 | 36 | <45 | 60 | 25kHz | ||
| SD55X | 55 | 38 | 400 | 2.2 | 5 | 62 | <90 | 100 | 25kHz | ||
| SD32T3 |
32 | 22 | 400 | 2.2^ | 5 | 36 10** |
<45 | 60 | 720kHz | ||
| SD07R3 | 7 | 5 | 400 | 2.7 | 500 | 7.7 | <12 | 30 | 50MHz | ||
| SD16R3 | 16 | 11 | 400 | 4.7 | 5 | 17 | <25 | 40 | 50MHz | ||
| SD32R3 | 32 | 22 | 400 | 10 | 5 | 36 | <45 | 60 | 50MHz | ||
| SD55R3 | 55 | 38 | 400 | 10 | 5 | 62 | <90 | 100 | 50MHz | ||
| SDRTD | 1 | 0.75 | 10< | 2.7 | 0.3 | 5 | <12 | 30 | 50MHz | ||
| SDPSTN | 162 | 114 | 550 | 4.7 | 5 | 175 | <200 | 235 | 4MHz | ||
| ac | |||||||||||
| ac rms | dc | rms | |||||||||
| SD150X | 170 | 120 | 3A+ | 0.1 | 250 | 170 | 130 | <400 | 450 | _ | |
| SD275X | 339 | 240 | 3A+ | 0.1 | 250 | 350 | 275 | <700 | 850 | _ | |
