SLP Series
产品名称：SLP Series
产品编号：144738-952
产品型号：SLP07D,SLP16D,SLP32D
更新时间：2009.12.02
出品厂家：英国MTL浪涌防雷保护器
浏览次数：132
SLP Series
Specifi cation
All fi gures typical at 77°F (25°C) unless otherwise stated
Maximum surge current
20kA (8/20μs waveform) per line
Leakage Current
<1mA @ working voltage
Maximum rated load current
1.50A
Loop resistance
2 Ohm
Capacitance
Line - Line - 60pF
Bandwidth
-0.1db @9kHz - 37MHz
-3dB @50MHz
Response time
<1ns
Ambient temperature
–40°C to +80°C (working)
–40°F to +176°F (working)
–40°C to +80°C (storage)
–40°F to +176°F (storage)
Humidity
5 to 95% RH (non-condensing)
Terminals
2.5mm2 (12 AWG)
Electrical connections
Plug/header screw terminal strip

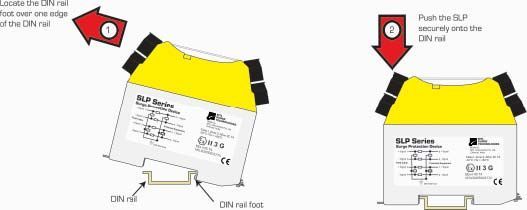

Mounting
T-section DIN-rail (35 x 15mm rail)
Weight
5oz (140g approximately)
Case fl ammability
UL94-V0
EMC compliance
BS EN 60950:1992
BS EN 61000-6-2:1999
BS EN 61010-1:1993
BS EN 61000-4-5:2006
| Model | SLP07D | SLP16D | SLP32D | |
| Nominal voltage | Un | 7V | 16V | 24V |
| Rated voltage (MCOV) | Uc | 8V | 18V | 32V |
| Nominal current | In | 1.50A | 1.50A | 1.50A |
| Nominal discharge current (8/20μs) | isn | 3kA | 3kA | 3kA |
| Max discharge current (8/20μs) | Imax | 20kA | 20kA | 20kA |
| Lightning impulse current (10/350μs) | Iimp | 2.5kA | 2.5kA | 2.5kA |
| Residual voltage @ isn | Up | 10V | 23V | 40V |
| Voltage protection level @ 1kV/μs | Up | <8V | <18V | <38V |
| Bandwidth | fG | 50MHz | 50MHz | 50MHz |
| Capitance | C | 60pF | 60pF | 60pF |
| Series resistance | R | 1 | 1 | 1 |
| Operating Temperature Range | -40°C to +80°C | |||
| Category tested | A2, B2, C1, C2, C3, D1 | |||
| Overstressed fault mode in=3kA | 22kA | 22kA | 22kA | |
| Impulse durability (8/20μs) | 10kA | 10kA | 10kA | |
| Degree of protection | IP20 | |||
| AC durability | 1Arms, 5T | |||
| Service conditions | 80kPa - 160kPa 5% - 95% RH | |||
