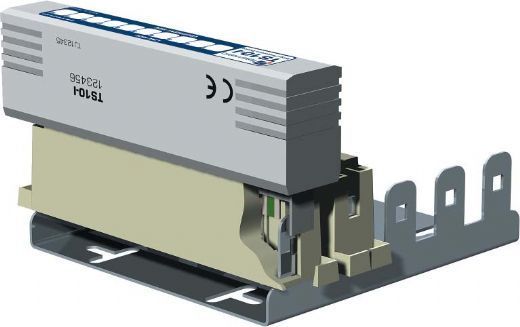

TS Series
产品名称：TS Series
产品编号：92553-807
产品型号：TS10-P,TS10-I
更新时间：2009.12.03
出品厂家：英国MTL浪涌防雷保护器
浏览次数：43

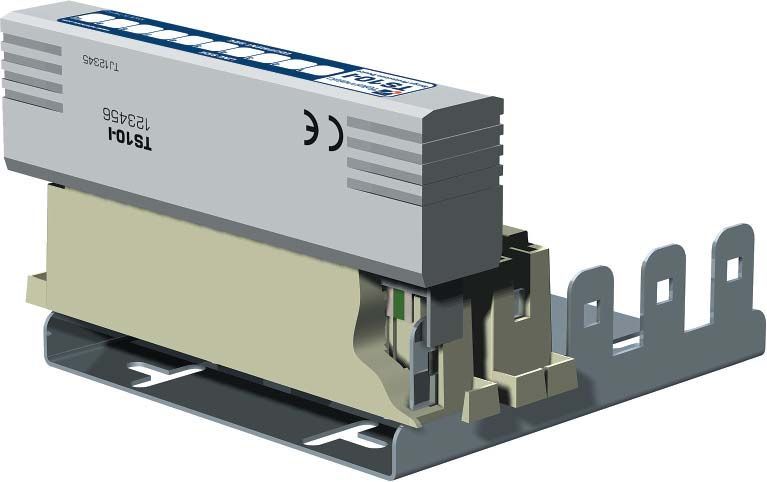

TS Series
Specifi cation
All fi gures typical at 77°F (25°C) unless otherwise stated
Maximum surge current
20kA (8/20μs single pulse commo mode)
10kA (8/20μs single pulse difference mode)
Maximum line current
TS10-P 150mA
TS10-I 150mA
Maximum working voltage
TS10-P 190V
TS10-I 65V
Loop resistance
TS10-P 9 ohms (+/-5%)
TS10-I 6.6 ohms (+/-5%)
Bandwidth
DC to 12MHz
Line (impedance) balance
<55dB
Return loss
<20dB
Insertion loss
<0.4dB @ 12MHz
Ambient temperature limits
-10°C to +60°C
+14°F to +140°F
Humidity
90% RH (non-condensing)
Terminals
PCB to plug into distribution frame
disconnection block
Casing
ABS plastic
Weight
65g (2.3oz)
Dimensions

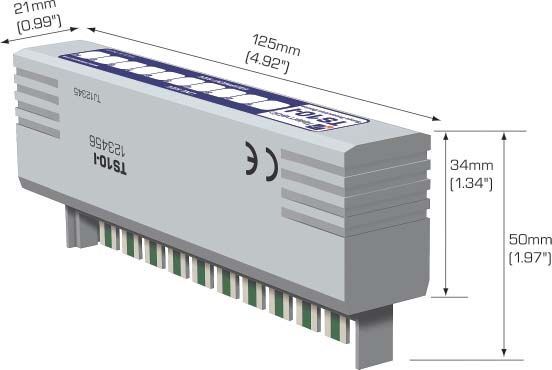

See fi gure 1
EMC compliance
To Generic Immunity Standard BS EN 50082-2,
part 2 for industrial environments
R&TTE compliance
BS EN 50082-2 : 1995
BS EN 60950 : 1992*
*only applicable to the TS10-P
LVD compliance
BS EN 60950 : 1992*
*only applicable to the TS10-PA-Tick (pending)
