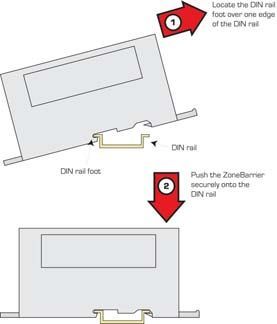

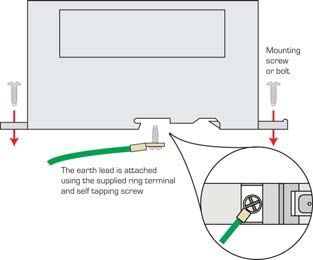

ZoneBarrier - Data & Signal
Specifi cation
All fi gures typical at 77°F (25°C) unless otherwise stated
Maximum load current
0.5 Amps
Maximum surge current
4-20mA versions 10kA
100Base-T versions 8kA (1kA per line)
Maximum leakage current
5μA at working voltage (4-20mA versions)
Maximum in line resistance
< 5 ohms
Bandwidth
4-20mA versions 0.5 MHz
100Base-T versions 155 MHz
Ambient temperature limits
–40°F to +185°F (working)
–40°C to +85°C (working)
Humidity
95% RH (non-condensing)
Casing
Molded plastic
Weight
2.8oz (0.08Kg)
Dimensions

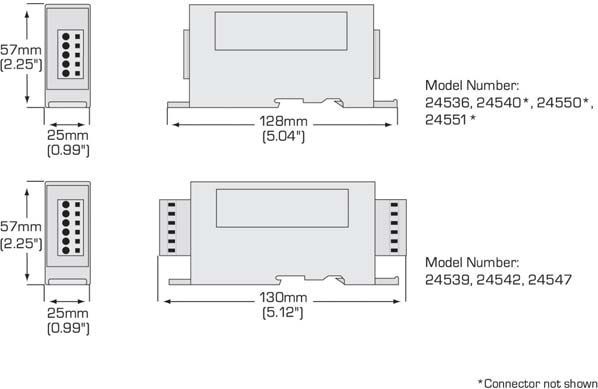

See fi gure 1
EMC compliance
BS EN 60950: 1992
BS EN 61000-6-2: 1999
| Model | Type | Lines | Working voltage (V) |
Limiting voltage (V) |
Maximum continuous operating voltage (V) |
Connectors |
| ZB24536 | 4-20mA | 4 plus shield | 24 | 30 | 30 | Terminal strip |
| ZB24539 | 4-20mA | 2 plus shield | 24 | 30 | 30 | Pluggable terminal strip |
| ZB24542 | 4-20mA | 6 | 24 | 30 | 30 | Pluggable terminal strip |
| ZB24547 | 4-20mA | 4 plus 2 shields | 24 | 30 | 30 | Pluggable terminal strip |
| ZB24540 | 100Base-T* | 8 | 5 | 10 | N/A | RJ45 |
| ZB24550 | 100Base-T | 2 x 4 | 5 | 10 | N/A | 2 x RJ45 |
| ZB24551 | 100Base-T* | 8 | 5 | 10 | N/A | RJ45 /110 Block |
