ZoneBarrier Series-T
产品名称：ZoneBarrier Series-T
产品编号：9183-335
产品型号：ZB24501,ZB24503,ZB24504,ZB24505,ZB24506,ZB24525,ZB24549,ZB…
更新时间：2009.12.03
出品厂家：英国MTL浪涌防雷保护器
浏览次数：52
ZoneBarrier Series-T
Specifi cation
All fi gures typical at 77°F (25°C) unless otherwise stated
Ambient temperature limits
–4°F to +185°F (working)
–20°C to +85°C (working)
Humidity
95% RH (non-condensing)
Casing
Moulded plastic
Weight
2.8oz (0.08Kg)
Dimensions

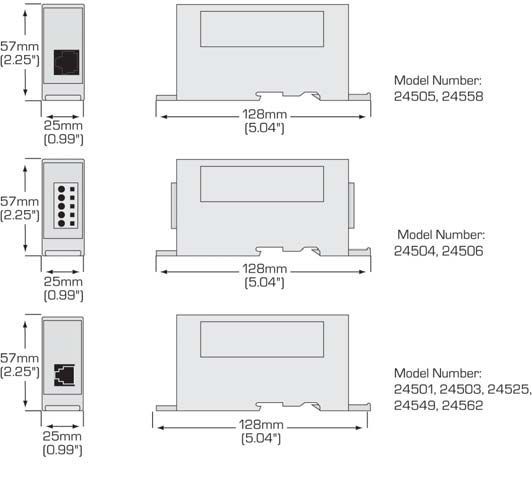

See fi gure 1
EMC compliance
BS EN 60950: 1992
BS EN 61000-6-2: 1999
BS EN 61010-1: 1993
R&TTE compliance
BS EN 50082-2: 1995
BS EN 41003: 1999
| Model | Type | Maximum surge current (kA) |
Wires | Working voltage (V) |
Let-through voltage (V) |
Bandwidth (MHz) |
Connectors |
| ZB24501 | Dial up | 3 | 2 | 200 | 270 | N/A | RJ11 |
| ZB24503 | Leased line | 3 | 4 | 75 | 105 | N/A | RJ11 |
| ZB24504 | Leased line | 3 | 4 | 75 | 105 | N/A | Terminal strip |
| ZB24505 | Digital data | 3 | 4 | 75 | 105 | >10MHz | RJ48S |
| ZB24506 | Digital data | 3 | 4 | 75 | 105 | >10MHz | Terminal strip |
| ZB24525 | Dial up | 3 | 4 | 200 | 270 | N/A | RJ11 |
| ZB24549 | ISDN | 3 | 2 | 75 | 105 | >80MHz | RJ11 |
| ZB24558 | T1 | 3 | 4 | 16 | 28 | >50MHz | RJ48C |
| ZB24562 | ADSL | 3 | 4 | 200 | 270 | 50MHz | RJ11 |
