mSA Series
产品名称：mSA Series
产品编号：134750-377
产品型号：mSA06/1,mSA16/1,mSA30/1,mSA51/1,mSA75/1,mSA06/2,mSA16/2,mS…
更新时间：2009.12.02
出品厂家：英国MTL浪涌防雷保护器
浏览次数：32

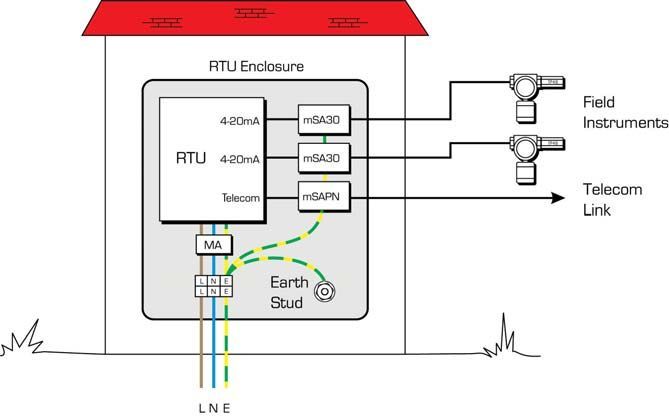

mSA Series
Specifi cation
All fi gures typical at 77°F (25°C) unless otherwise stated
Maximum surge current
10kA (8/20μs waveform)
Nominal resistance per line
mSA’s 43 ohms
mSAPN’s 5 ohms
Ambient temperature limits
-40°C to +80°C - working
-40°F to +176°F - working
Humidity
5% to 95% RH (non-condensing)
Enclosure
Plastic ABS
IP65 (NEMA 12 and 13)
Ready fi tted with cable glands
Connectors
mSA’s screw-clamp terminals
mSAPN’s IDC terminals
Terminals
mSA’s 2.5mm2 (12AWG)
mSAPN’s IDC terminals (tool provided)
Mounting
via M5 external earth stud
Weight
220g (7.8oz) approx.

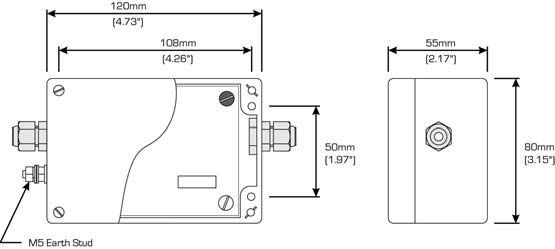

Dimensions
See fi gure 1
EMC compliance
To Generic Immunity Standards
BS EN 50082, part 2 for industrial environments
R&TTE compliance
BS EN 50082-2: 1995
BS EN 41003: 1999
LVD compliance (mSAPN)
BS EN 41003: 1999
| Model | Lines | Working voltage (V) |
Rated load current (mA) |
Maximum leakage current (μA) |
Maximum continuous operating voltage (V) |
Limiting voltage (V) |
Bandwidth |
| mSA06/1 | 1 pair | 5.5 | 70 | 1000 | 6 | 30 | 220kHz |
| mSA16/1 | 1 pair | 13.5 | 180 | 5 | 16 | 40 | 380kHz |
| mSA30/1 | 1 pair | 25.5 | 340 | 5 | 30 | 60 | 500kHz |
| mSA51/1 | 1 pair | 43.5 | 400 | 5 | 51 | 100 | 580kHz |
| mSA75/1 | 1 pair | 64 | 400 | 5 | 75 | 150 | 600kHz |
| mSA06/2 | 2 pairs | 5.5 | 70 | 1000 | 6 | 30 | 220kHz |
| mSA16/2 | 2 pairs | 13.5 | 180 | 5 | 16 | 40 | 380kHz |
| mSA30/2 | 2 pairs | 25.5 | 340 | 5 | 30 | 60 | 500kHz |
| mSA51/2 | 2 pairs | 43.5 | 400 | 5 | 51 | 100 | 580kHz |
| mSA75/2 | 2 pairs | 64 | 400 | 5 | 75 | 150 | 600kHz |
| mSAPN/1 | 1 pair | 180 | N/A | 10 | 200 | 250 | 10MHz |
| mSAPN/2 | 2 pairs | 180 | N/A | 10 | 200 | 250 | 10MHz |
