AirGuard FGT Series
Product Name：AirGuard FGT Series
Product Model：RF51069,RF51070,RF51072,RF51073
Updated：2009.12.03
Views：31
AirGuard FGT Series
Maximum discharge current
20kA (8/20μs)
Maximum power rating (VSWR)
1.5:1 @ 1.5GHz
Frequency Range
DC to 2.5GHz
Peak Pulse Current (8/20μs)
15kA - 20kA
Impedance
75 Ω
| Model | Connectors | Frequency Range (GHz) |
VSWR | Insertion Loss (dB) |
Peak Pulse Current (8μs x 20μs) |
Impedance (Ω) |
| RF51069 | F(f) Bulkhead to F(f) | DC - 2.5 | 1.5:1 | 0.4 | 20kA | 75 |
| (for LMDS/RG 6 Cable) | @1.5GHz | |||||
| RF51070 | F(f) Bulkhead to F(f) | DC - 2.5 | 1.5:1 | 0.4 | 20kA | 75 |
| (for LMDS/RG 59 Cable) | @1.5GHz | |||||
| Model | Connectors | Frequency Range (GHz) |
Return Loss (dB) |
Insertion Loss (dB) |
Peak Pulse Current (8μs x 20μs) |
Impedance (Ω) |
| RF51072 | F(f) Bulkhead to F(f) | DC - 2.5 | -18 | 0.03 | 20kA | 75 |
| RF51073 | F(f) Bulkhead to F(f) | DC - 1.0 | -20 | 0.1 | 15kA | 75 |

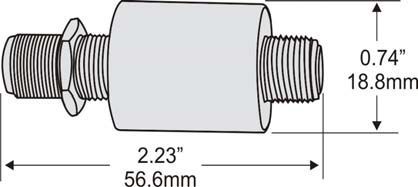

Model No. RF51073
Model No. RF51069 RF51070 RF51072
