AirGuard WQWS Series
Product Name：AirGuard WQWS Series
Product Model：RF51037,RF51038,RF51039,RF51040,RF51074
Updated：2009.12.03
Views：28
AirGuard WQWS Series
Maximum discharge current
60kA to 100kA (8/20μs)
Maximum power rating (VSWR)
1.15:1
Frequency Range
.82 to .97GHz and 1.7 to 2.2GHz
Peak Pulse Current (8/20μs)
N type - 60kA
7/16 - 100kA
Impedance
50 Ω
| Model | Mounting Connector |
Second Connector |
Impedance(Ω) |
| RF51037 | 7/16 Female | 7/16 Male | 50 |
| RF51038 | 7/16 Female | 7/16 Female | 50 |
| RF51039 | N Female | N Female | 50 |
| RF51040 | N Female | N Male | 50 |

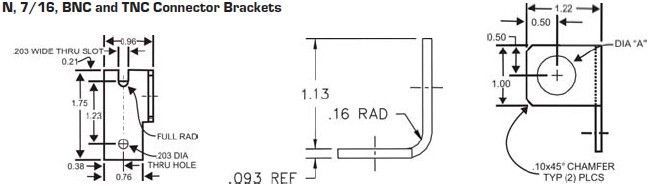

Brackets
| Model | Connectors | Diameter |
| RF51074 | 7/16 DIN | 1.146” ( 2.91cm) |
