ZoneGuardian Series
Product Name：ZoneGuardian Series
Product Model：ZG42003,ZG43005,ZG43006,CP24001,CP24003,CP24004,CP24005,CP
Updated：2009.12.03
Views：25
ZoneGuardian Series
Specifi cation
All fi gures typical at 77°F (25°C) unless otherwise stated
Maximum surge current
64kA
Load current
12 Amps
Working voltage
125V
Let-through voltage
230V
UL 1449 rating
330 volts between ALL lines (L-N, L-G, N-G)
Joule rating
740 joules
Max. power
1875W
Response time
Instantaneous
Dimensions

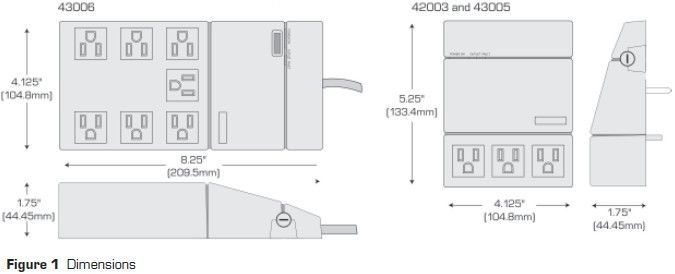

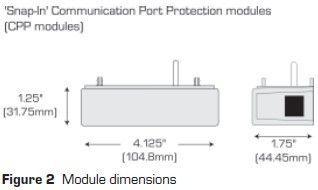

See fi gure 1

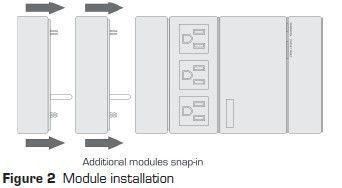

| Model | Type | Outlets | Maximumsurge current(kA) | Workingvoltage(V) | Let-throughvoltage(V) |
| ZG42003 | AC plug-in | 3 | 64 | 120 | 230 |
| ZG43005 | AC power strip | 3 | 64 | 120 | 230 |
| ZG43006 | AC power strip | 7 | 64 | 120 | 230 |
| Module part # |
Connectortype | Maximum operating frequency(MHz) |
Clamp voltage (V) |
Maximum surge current (kA) |
Application |
| CP24001 | RJ11 | N/A | 270 | 3 | Secondary 2-wire Dial-up |
| CP24003 | RJ11 | N/A | 105 | 3 | Secondary 4-wire Lease Line |
| CP24004 | Terminal strip | N/A | 105 | 3 | Secondary 4-wire Lease Line |
| CP24005 | RJ48S | >10 | 105 | 3 | Secondary 4-wire Digital Data Service |
| CP24006 | Terminal strip | >10 | 105 | 3 | Secondary 4-wire Digital Data Service |
| CP24009 | Terminal strip | 0.5 | 27 | 3 | Primary 4-wire RS232 |
| CP24010 | Terminal strip | 0.5 | 27 | 3 | Primary 5-wire RS233 |
| CP24011 | RJ45 | 0.5 | 27 | 3 | Primary 8-wire RS234 |
| CP24018 | Terminal strip | 50 | 10 | 10 | Primary 2-wire + G RS485 |
| CP24021 | BNC | 70 | 15 | 10 | Primary Coax, IBM 3270 / Video |
| CP24025 | RJ11 | N/A | 270 | 3 | Secondary 4-wire Dial-up |
| CP24028 | Terminal strip | 60 | 15 | 10 | Primary 4-wire + Shield RS422 BiPolar |
| CP24034 | BNC | >150 | 30 | 10 | Primary Coax 10Base-2 |
| CP24037 | BNC | 70 | 30 | 10 | Primary Coax Arcnet |
| CP24040 | RJ45 | >155 | 10 | 1 | Secondary 8-wire Cat.5 LAN |
| CP24049 | RJ45 | >80 | 105 | 3 | Secondary 2-wire ISDN |
| CP24052 | F-type Coaxial | 100 | <20 | 10 | Cable TV, Digital Satellite |
| CP24056 | RJ31X | N/A | 270 | 3 | Secondary 4-wire Dial-up |
| CP24058 | RJ48C | >50 | 28 | 10 | T1 |
