SATELIT3 (satellite) optical lightning rod

Product Name：SATELIT3 (satellite) optical lightning rod
Product Model：Satelit 3-25,Satelit 3-45,Satelit 3-60
Updated：2010.03.29
Views：2

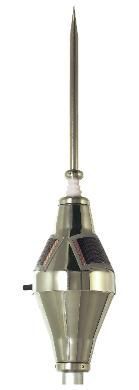

SATELIT 3. Active lightning with photovoltaic cells

SATELIT 3 - active lightning with photovoltaic cells created by DUVAL--MESSIEN, France. It comes from a very long work improvement and extensive testing, using years of experience to establish the elements of active and passive lightning protection. In 2003 SATELIT3 was presented at the international market and in France. Today it the world is only active lightning conductor with a photoelectric sensor and solar panels for charging batteries.

The main task performed by Satelit3, - A quick method of discharge, ie early streamer emitter (ESE).

Passive lightning protection systems are waiting for them struck by lightning. Active system shows its capability in advance and does not allow the discharge is not a lightning rod - forcing the category to go through the lightning. Satelit3 -- is the height of perfection active systems. Based system Satelit3 actively monitors the process, actively intervenes in it and actively protects the assigned object. The presence of a controlled charge of a large building opposite polarity can get a bit of lightning significantly earlier and significantly reduce the probability of lightning is not the correct path for you, which can lead to unpleasant, but Potro and very dire consequences.

In comparison with other systems of active lightning SATELIT 3 has the advantages:
* -- internal excitation of high voltage on the needle lightning going directly to beginning of the process molnieobrazovaniya,
-- * flexible photovoltaics and batteries for charging its own battery power supply provides full autonomy SATELIT 3 from external power
--detection system changes the electrostatic field and the definition of polarity. AboutAIN principle of lightning - to capture the lightning and defuse the charge on the land for a given you way. Therefore it is important to pre-determine the polarity (positive or negative), the resulting electric field transients and determine the nature of the capacity to capture lightning, activate the internal electronic device for charging needle lightning.

Works lightning follows:

(1) normal state:

three flexible light battery, located on the body SATELI 3, continuously recharges internal rechargeable Ni-MH battery (the maximum charge voltage 7.2 V), photocells, controller and sensor tension and polarity of the electric field supplied from this battery. Diagnostic Console TELETST 3 gets data on the normal state.

(2) (2) beginning of the process:

during outbreaks or increasing the electric field of photoelectric sensors and lightning sensors atmospheric electric field, excite circuit controls the polarity (negative polarity or polozhitelnoya). The controller, receiving information about the probability of lightning, the field strength and polarity of the exciting high-voltage converter. Converter charges the tip of the needle lightning to building 35 ~ 45KV. What leads to high onizatsii air around the end of the lightning.(3)

(3) flash and a lightning bolt through molnieovod:

during a lightning strike to the lightning rod at the beginning of the outbreak, stopped operations (2). The vast majority of lightning within a radius of protection are captured by a needle, and deflected into the ground. Internal elements SATELI 3 is not connected with the grounding, so do not be shocked by lightning and destroyed.

After reduction of the electrostatic field, the system automatically deactivated for 45 min.

If storm clouds appear again and increase the electrostatic field, the system will work again, as described above.

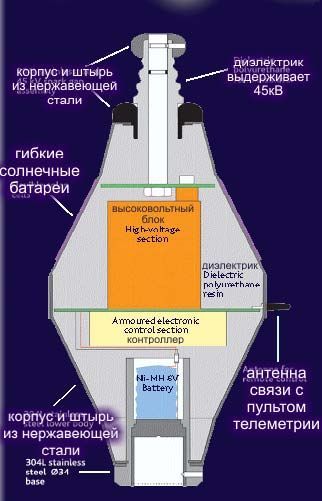

Device SATELIT 3:

SATELIT 3

Needle, nest building and discharge are made of stainless steel. The design uses one type of stainless steel grade 304 L to avoid tension
within the structure between the different metals.
The components of electronic control circuit located inside the shell. Components are protected from environmental exposure and aging on
the best way of modern technology. In order to ensure the reliability of lightning used solar panels and photovoltaic cells, which are commonly
used in the aerospace industry. The highly reliable battery can, however, easily replaced. The high degree of protection from dust, corrosive
deposits and changes in temperature insulation provide SATELI3 long life without failure. Construction equipment provides protection against
any environmental influences. It can be used both in the tropics, where it is constantly very high humidity, and under conditions of extreme
continental climate - in Siberia or the deserts with huge diurnal temperature changes.

Results of laboratory tests:
DUVAL--MESSIEN very closely related to regular and various tests of its equipment and permits the sale only after the positive test results. Tests were conducted on a pre-emptive
withdrawal of lightning, fotoelektrichekuyu reliability and stability.

COFRAC test (high-voltage laboratory Basset, France)
High Voltage Laboratory of Wuhan, China.
Korea Research Institute of high voltage and electrical engineering.
Ukrainian Institute of high voltage and electrical Kharkiv. Ukraine
France Alstom T & D
Function of remote diagnostics via remote diagnostics Teletester-S3
Distance Diagnosis lightning is very convenient in use.

How does remote diagnostics.

An important feature Satelit3remote presence diagnosis (there is a device without a remote control and diagnostics), which allows you to diagnose both 1 lightning. If,
for example, if the system 10 lightning, diagnostics will be held consecutively, one by one. Device for remote diagnostics exercises control over a lightning rod in the
radius of a maximum of 50 to 100 m. To test the lightning on the remote, you must first enter a code the serial number. Transmitter integrated into molniepriemnik
every 90 seconds. transmits radio signals to the control device that provides 2 kinds of information about the battery: If the battery is charged weakly lit red when the
battery charge is sufficient for the green light. First flashing, then lights up. In lightning, reliable nickel battery with a resource for 5-7 years.
Lightning Satelit3 every 90 seconds, after receiving the test signal from the responds automatic response signal. A return signal is formed and coded controller after
confirming rabotosposobnoi lightning. Several lightning could communicate with a remote control Teletester-S3. Each lightning has its own unique serial number which
can be put in through an external antenna. in the range of FM, the frequency of 433MHz

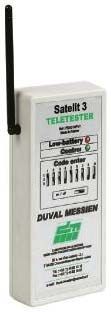

Teletester-S3:Housing ABS material execution IP54. Weight: 200 g Operating frequency: 433MHz. Dimensions: 170 x 85 x 34 mm. Nutrition : Battery PP3 9V
Steps for diagnosing :
(1), enter the serial number Satelit3.
(2) Install battery lightning. Retired to a distance of not more than 50 meters and connect the power supply
(3) Insert, wait for about 2 minutes, the appearance of the display of test results.
(4) Results of the test: If the green light after two minutes of waiting flashes, and then is lit normally. If he was a blinking green light, and then disappeared - need
battery charging from solar panels to maintain proper function.

For the three levels lightning DUVAL--MESSIEN offers three models of lightning.

Product Range Satelit 3 includes three versions of the device. They differ in length of the initiation of the top leader. (parameter dL)
Satelit 3-25 - 25 meters;
Satelit 3-45 - 45 meters;
Satelit 3-60 - 60 meters.
Below is a table on which you can find the protective radius depending on the model of the device, the level of protection, and the height at which the device is installed.

Privacy protection radius (m)
Satellite Optical lightning	H = height of the tip (m)
Satellite Optical lightning	2	3	4	5	6	10	15	20	45	60
Level 1. 1 st level provides protection within 95-98%. This level of protection designed for buildings where concentrated a large number of people who are high-tech equipment, which houses the cultural heritage, or there is a danger of a nuclear explosion, such as theaters, schools, hotels, banks, department stores, high-rise buildings of business firms with expensive equipment, child care facilities industrial enterprises.
Satelit 3-25	17	25	34	42	43	44	45	45	45	45
Satelit 3-45	26	38	50	63	63	64	65	65	65	65
Satelit 3-60	32	48	64	79	79	79	80	80	80	80
Level 2. Level 2 provides protection to the facility within 80-95%. Suitable for farms, agricultural institutions, with fire risk associated with the presence of electrical appliances.
Satelit 3-25	23	34	46	57	58	61	63	65	70	70
Satelit 3-45	34	48	64	81	81	83	85	86	90	90
Satelit 3-60	40	59	78	97	97	99	101	102	105	105
Level 3. 3rd level of lightning protection guarantees protection within 0-80%. Suitable for private homes
Satelit 3-25	26	39	52	65	66	69	72	75	84	85
Satelit 3-45	36	50	72	89	90	92	95	97	104	105
Satelit 3-60	44	65	87	107	107	109	111	113	119	120

You can put 1,2 or more devices, depending on need. Install lightning Satelit 3 should be at least higher than 2 meters.
For preliminary selection, you can use data table. To select final selection, please use the link with the specialists DUVAL-
-MESSIEN in your area. You quickly and free will calculate the necessary configuration. Example of calculation of lightning
protection facility

Installation sites

The device is installed in accordance with the project. When mounting the first connected to the battery, close the lid, then
twisted the mast. See the Installation Guide Dimensional drawing here.
Lightning SATELIT3 was developed based on the life of not less than 20 years.
value * of the device depends on its modification.
Satelit 3-25 - 2300 euros without VAT;
Satelit 3-45 - 3100 euros without VAT;
Satelit 3-60 - 3950 euros without VAT.
TELETESTER-S3-420 euros, excluding VAT.
----
* - Price is given based on the situation on 01.01.2009. To determine the amount of your order, please contact a representative DUVALMESSIEN
