Satelit + lightning conductor


Product Name：Satelit + lightning conductor
Product Model：ESE2500,ESE4000,ESE5000,ESE6000
Updated：2010.03.30
Views：2

Among the most popular products in the SATELIT range, the ESE SATELIT+ is installed on numerous exposed sites around the world.

Its robust design makes the SATELIT+ the ideal lightning conductor for installations in extreme climatic conditions.

The SATELIT+ has been tested in accordance with the procedure described in the standard NF C 17-102.




The zone protected by an Early Streamer Emission lightning conductor SATELIT is defined in the standard NF C 17-102.ESE Satelit are designed to reduce the average time associated with starting of the upward streamer.The protected zone is determined on the basis of the electro-geometric model depending on the triggering advance time.


Lightning Protection System made by Duval-Messien of France.
Protects buildings, factories, and golf courses against destructive lightning strikes.

The all new improved design of the Satelit+ powered by its double action Early Streamer Emission (ESE) lightning conductor is a product of thorough evaluation tests to French Standard NFC 17-102.

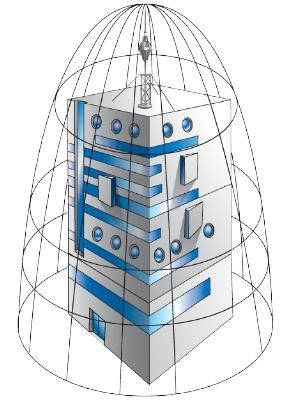

How Much Protection does the Satelit+ Offer? Please view:

PROTECTION RADIUS (m)
Types of SATELIT+
2 4 5 7 10 15 20 45 60
PROTECTION LEVEL 1
ESE 1000 10 20 26 27 28 30 30 - -
ESE 2500 17 34 42 43 44 45 45 - -
ESE 4000 24 46 58 59 59 60 60 - -
ESE 5000 28 55 68 69 69 70 70 - -
ESE 6000 32 64 79 79 79 80 80 - -
PROTECTION LEVEL 2
ESE 1000 15 30 38 40 42 46 49 55 -
ESE 2500 23 45 57 59 61 63 65 70 -
ESE 4000 30 60 75 76 77 80 81 85 -
ESE 5000 35 69 86 87 88 90 92 95 -
ESE 6000 40 78 97 98 99 101 102 105 -
PROTECTION LEVEL 3
ESE 1000 18 37 43 46 49 54 57 68 70
ESE 2500 26 52 65 66 69 72 75 84 85
ESE 4000 33 66 84 85 87 89 92 99 100
ESE 5000 38 76 95 96 98 100 102 110 110
ESE 6000 44 87 107 108 109 111 113 120 120

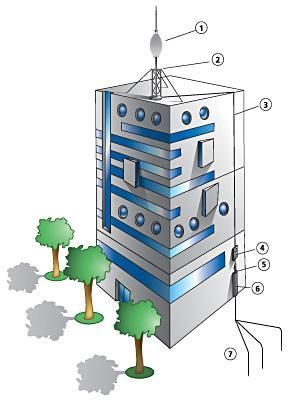

Standard Installation Diagram


 1、ESE Satelit

 2、Mast extension

 3、Down conductor

 4、Lightning Strike Counter

 5、Test joint

 6、Protection sheath

 7、Earthing system
